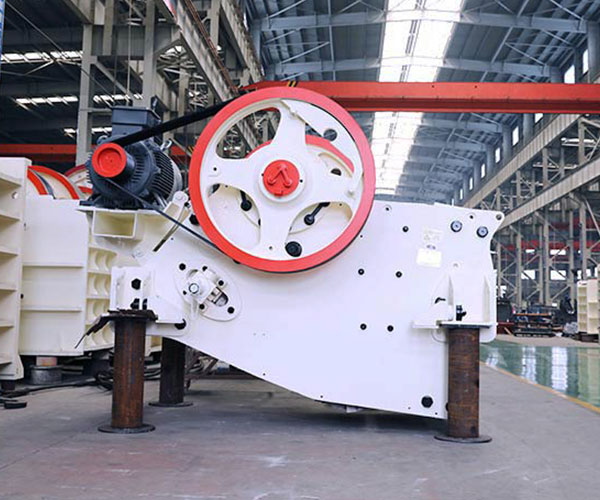

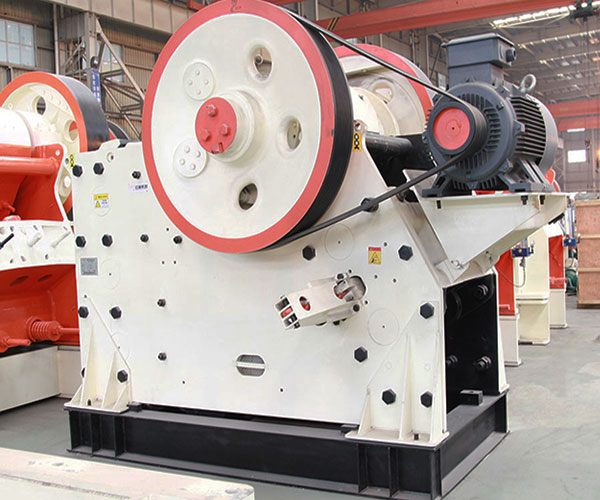

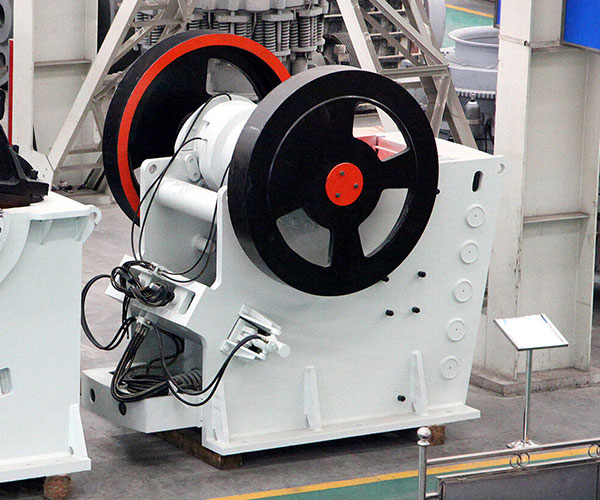

Jaw Crusher

Jaw crushers are typically used as primary crushers. We provide pe series jaw crusher, pew series jaw crusher, c series jaw crusher, mobile jaw crusher, used for primary secondary fine crushing, meeting different needs.

Applications: For granite, quarry stones, rocks, aggregate, basalt, limestone, gold ore, iron ore, etc.

WhatsApp: +8618866668888 E-Mail: sales@sanyongroup.com

Key Features

1. Simple structure, easy maintenance.
2. High crushing ratio and crushing strength.
3. Adjustable discharging size, even output granularity.
4. High reliability, long service life.
5. High quality spare parts, low operating cost.

Working Principle

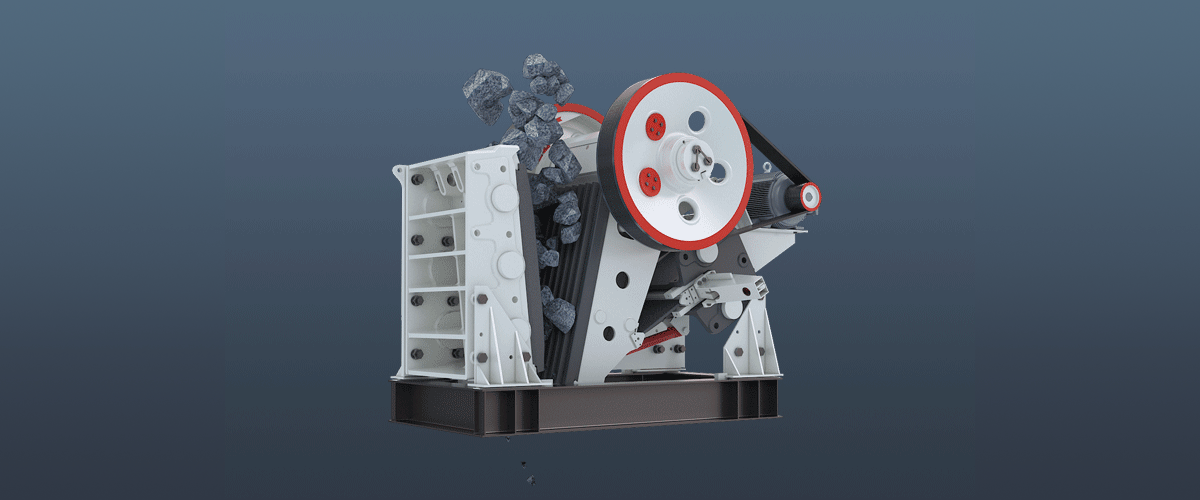

Electrical motor drives the belt wheel to make the swing jaw move following the specific track by eccentric shaft. After the materials enter into the crushing chamber, they are crushed between the two jaw plates by impacting, bending, and striking, and then discharged from the discharge opening.

Technical Specifications

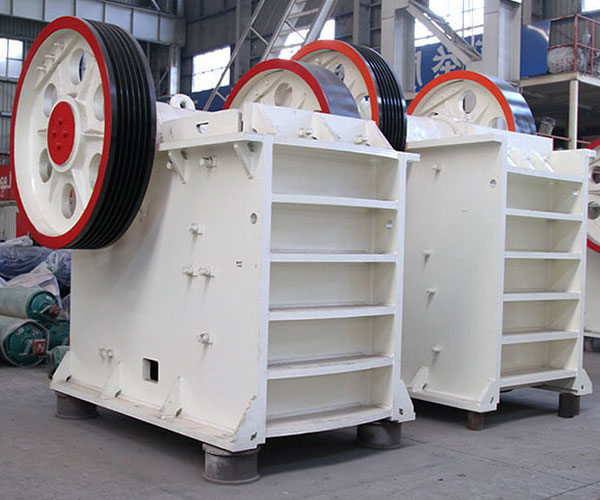

PE Series Jaw Crusher

Model	Feed opening (mm)	Max. Feeding Size (mm)	Adjustable Discharge opening (mm)	Capacity (t/h)	Motor Power (kW)	Overall Dimensions (mm)
PE250×400	250X400	200	20-60	5-20	15	1150×1275×1240
PE250x1000	250X1000	210	15-50	15-50	30	2790×2670×1380
PE400×600	400X600	350	40-100	15-60	30	1700×1732×1653
PE500×750	500X750	425	50-100	50-100	55	2035×1921×2000
PE600×900	600X900	500	65-160	60-130	55-75	2290×2206×2370
PE750×1060	750X1060	630	80-140	110-250	90-110	2620×2302×3110
PE900×1200	900X1200	750	100-200	160-380	130	3789×2826×3025
PE1000×1200	1000X1200	850	200-300	315-550	130	3889×2826×3025
PE1200×1500	1200X1500	1000	150-350	400-800	200	4930×3148×3560

PEW Series Jaw Crusher

Model	Feed opening (mm)	Max. Feeding Size (mm)	Range of discharge opening (mm)	Capacity (t/h)	Motor Power (kW)	Overall dimension (mm)
PEW200×1300	200×1300	150	10-30	12-35	30	1320×2150×1176
PEW250×1000	250×1000	220	20-40	15-50	30	1400×1850×1310
PEW250×1200	250×1200	220	20-40	20-50	37	1450×2150×1175
PEW400×600	400×600	350	35-85	15-70	37	1920×1460×1840
PEW760	760×1100	620	75-200	150-350	110	2950×2360×2760
PEW860	840×1100	720	100-225	200-500	132	3300×2320×3120
PEW1100	1100×1200	940	150-275	300-650	185	4140×2660×3560

CJ Series Jaw Crusher

Model	Feed opening (mm)	Max. Feeding Size (mm)	Range of discharge opening (mm)	Capacity (t/h)	Motor Power (kW)	Overall dimension (mm)
CJ80	520×800	420	60-150	80-290	75	2650×1540×1780
CJ100	760×1000	630	70-175	130-420	110	3700×2440×2520
CJ110	850×1100	720	80-200	160-550	160	3800×2450×2550
CJ125	1000×1250	800	100-250	230-760	160	4100×2750×2780
CJ145	1200×1450	920	125-275	320-950	200	4400×3060×3210
CJ160	1200×1600	1020	150-300	410-1150	250	5700×3650×3550
CJ200	1500×2000	1200	175-300	610-1510	400	6500×3990×4260
CJ6310	630×1000	580	80-180	100-195	75	3763×2280×2644
CJ8711	870×1100	720	85-220	130-360	110	4124×2480×3020
CJ1113	1100×1300	940	120-260	360-780	160	4863×2762×3489
CJ1216	1200×1600	1050	165-320	450-1100	220	6700×4040×4465
